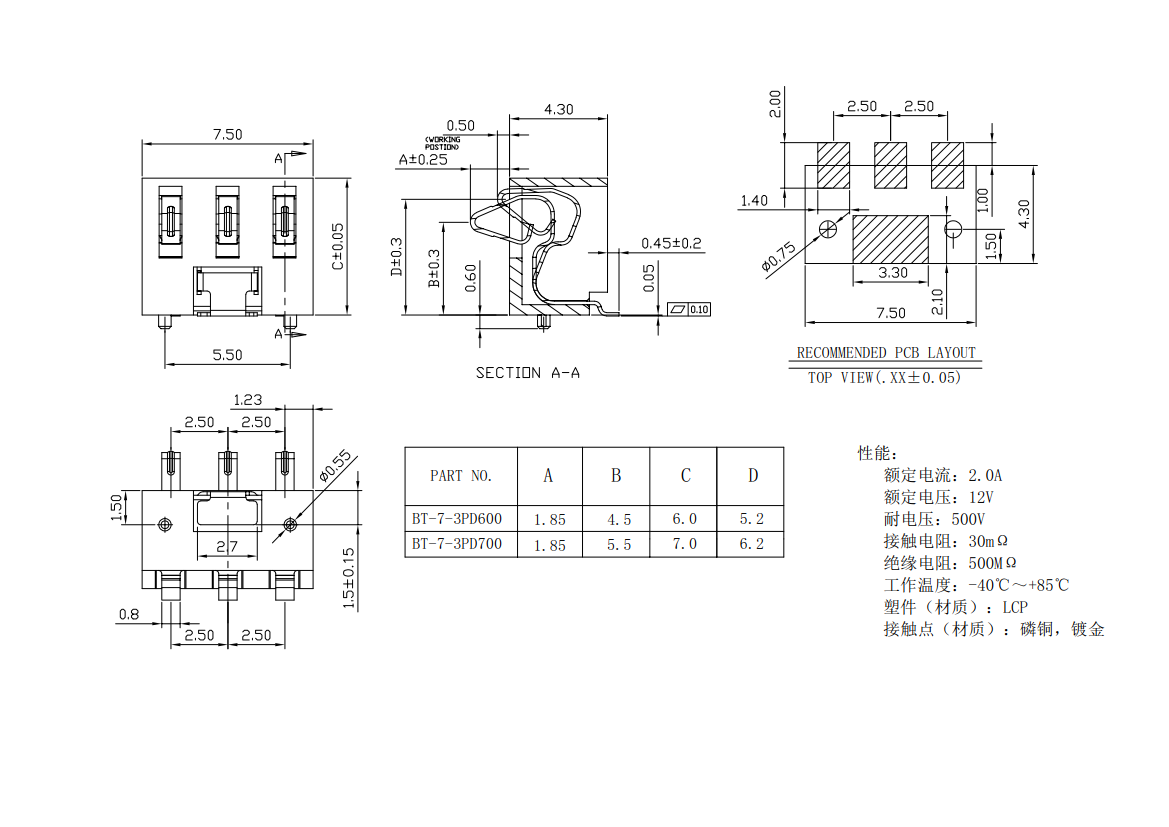

BT-7-3PD 3pin Male Battery Charger Connector Vertical SMT Type for PCB PH2.5mm Height 4.3mm to 5.4mm Featured Image

BT-7-3PD 3pin Male Battery Charger Connector Vertical SMT Type for PCB PH2.5mm Height 4.3mm to 5.4mm

Short Description:

Send email to us

Product Detail

Product Tags

Item:spring battery contact Male
Mounting:SMT Right Angle
Pitch:2.5mm
Contact Numbers:3 Position
Housing Material :LCP
Contact Material:Phosphorous copper
Contact Finish:Gold Plated
Power Rated:DC12V 2A
Housing Height Option:6.0mm, 7.0mm
Contact Height Options:4.5mm, 5.5mm
